160T Clamping Force Vertical Injection Molding Machine with Rotary Table and 1 Year Warranty
Detail produk:
| Tempat asal: | Guangdong, Cina |
| Nama merek: | JINTONG |
| Nomor model: | JTT-1600R |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 buah |
|---|---|
| Harga: | $53,500-56,000 / piece |
|
Informasi Detail |
|||
| Kapasitas Plastisisasi: | 400 gram/detik | Tinggi Cetakan: | 260 - 530mm |
|---|---|---|---|
| Stroke ejector: | 75 mm | Kekuatan Ejektor: | 34 kN |
| Volume tembakan: | 570 cm³ | Tingkat suntikan: | 202 g/dtk |
| Berat injeksi: | 513 gram | Kecepatan sekrup: | 1 - 155 rpm |
| Diameter sekrup: | 55 mm | Sekrup L/D: | 28 |
| Ikat jarak bar: | 660 mm | Berat mesin: | 7000 kg |
| Pukulan Terbuka: | 500 mm | Kekuatan: | 22 kw |
| Dimensi mesin: | 2.8*2.1*3.4 m | ||
| Menyoroti: | 160T Clamping Force Vertical Injection Molding Machine,1 Year Warranty Vertical Injection Molding Machine,Vertical Clamping Plastic Injection Molding Machine |
||
Deskripsi Produk

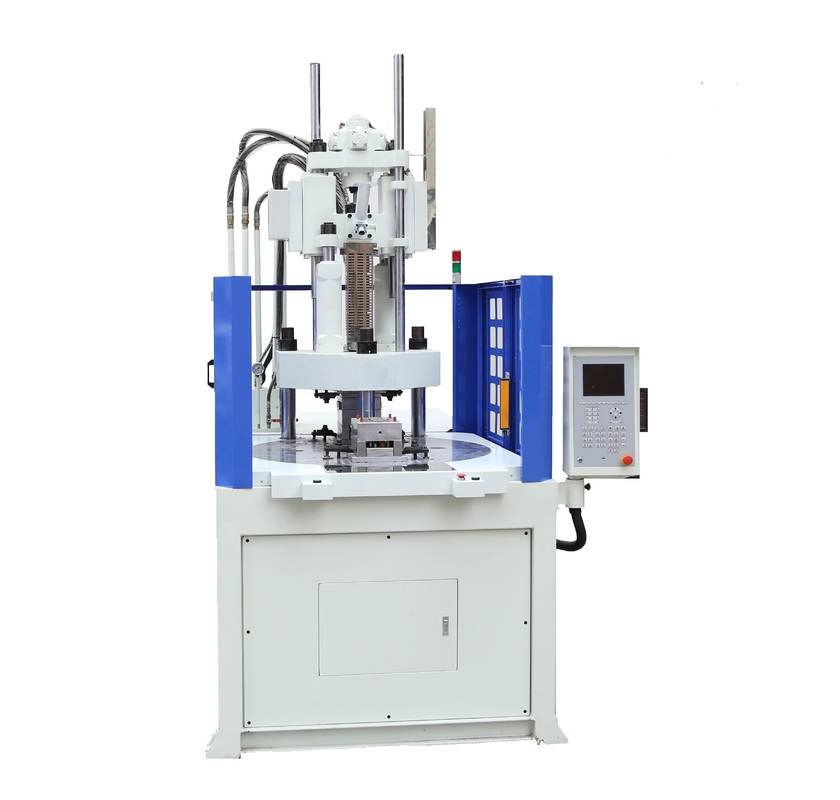

Vertical Rotary Injection Molding Machine JTT-1600R
Key Specifications
| Clamping Force | 160T |
| Injection Weight | 344-513g |
Product Features
- Vertical clamping and vertical injection design
- Easy torque, speed, and deceleration distance adjustment
- Computer-controlled rotary table with multiple rotation modes
- Optional energy-saving motor available
- Adjustable clamping force, injection weight, and shot speed
- Multi-station configuration options (2, 3, or more stations)
Product Images
Technical Advantages
Energy-saving: Saves 30% energy compared to similar products using SIFU pump system
High efficiency: SIFU motor with max speed 2200/min increases productivity by 15%
Low heating: Reduces cooling water requirement by 55%
Low noise: Optimized motor operation reduces noise by 15-20db
Precision: Closed-cycle control with pressure sensor and motor rotary encoder for consistent output
Service Commitment
With 17 years of experience, we've developed systematic service processes and maintain a 24-hour response mechanism to promptly address customer needs and provide optimal solutions.
