Rotary Table Vertical Injection Moulding Machine with 200T Clamping Force High Productivity and 1 Year Warranty
Detail produk:
| Tempat asal: | CINA |
| Nama merek: | JINTONG |
| Sertifikasi: | ISO9001 CE |
| Nomor model: | JTT-2000R |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 buah |
|---|---|
| Harga: | $62,000-66,000 / piece |
|
Informasi Detail |
|||
| Kekuatan penjepit: | 200t | Berat injeksi: | 456-662G |
|---|---|---|---|
| Stroke ejector: | 75 mm | Kekuatan Ejektor: | 48 kN |
| Volume tembakan: | 678 cm³ | Tingkat suntikan: | 212 g/dtk |
| Diameter sekrup: | 60 mm | Ikat jarak bar: | 760mm |
| Berat mesin: | 12000KG | Pukulan Terbuka: | 600 mm |
| Kekuatan: | 44,3kW | Stroke sekrup: | 260mm |
| Angkatan Pembuka: | 22.4t | Diameter Meja Putar: | 1500mm |
| Dimensi mesin: | 3,0*2,2*3,6m | ||
| Menyoroti: | 200T Clamping Force Vertical Injection Moulding Machine,High Productivity Rotary Table Injection Moulding Machine,1 Year Warranty Vertical Plastic Injection Moulding Machine |
||
Deskripsi Produk

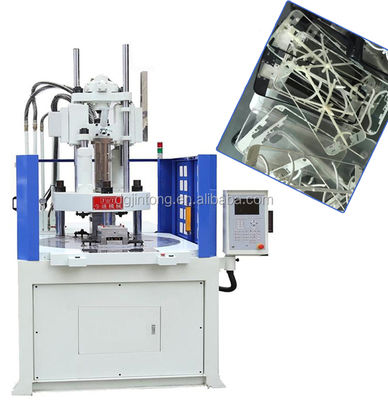

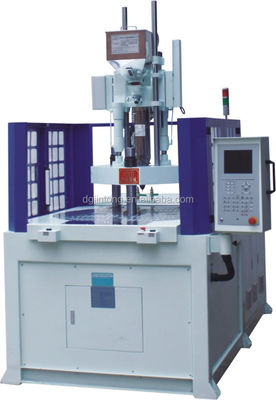

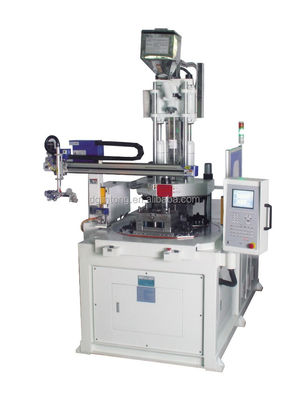

Rotary Table Vertical Plastic Injection Moulding Machine 200T (Model JTT-2000R)
Key Specifications
| Clamping Force | 200T |
|---|---|
| Injection Weight | 456-662g |
Product Description
Vertical clamping and injection system with rotary table functionality for efficient plastic molding operations.
Main Features
- Vertical clamping and injection system
- Adjustable clamping force, injection weight and shot speed
- Multiple station configurations (2, 3 or multi-station)
- Computer-controlled rotary table with forward, reverse, and alternating rotation
- Optional energy-saving motor available
- Easy torque, speed, and deceleration distance adjustment
Product Advantages
Energy Efficiency
Saves 30% energy compared to similar products using SIFU pump system
High Productivity
SIFU motor with max speed 2200/min increases oil pump output, improving productivity by over 15%
Thermal Management
Reduces cooling water requirement by 55% compared to similar machines
Quiet Operation
Optimized motor with imported bearing and oil pump reduces noise by 15-20db
Precision Molding
Closed-cycle control with pressure sensor and motor rotary encoder ensures product consistency
Service Advantage
With 17 years of customer service experience, we've developed systematic and standardized service processes including a 24-hour response mechanism to promptly resolve customer issues.
