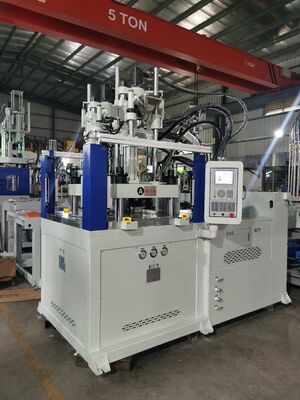

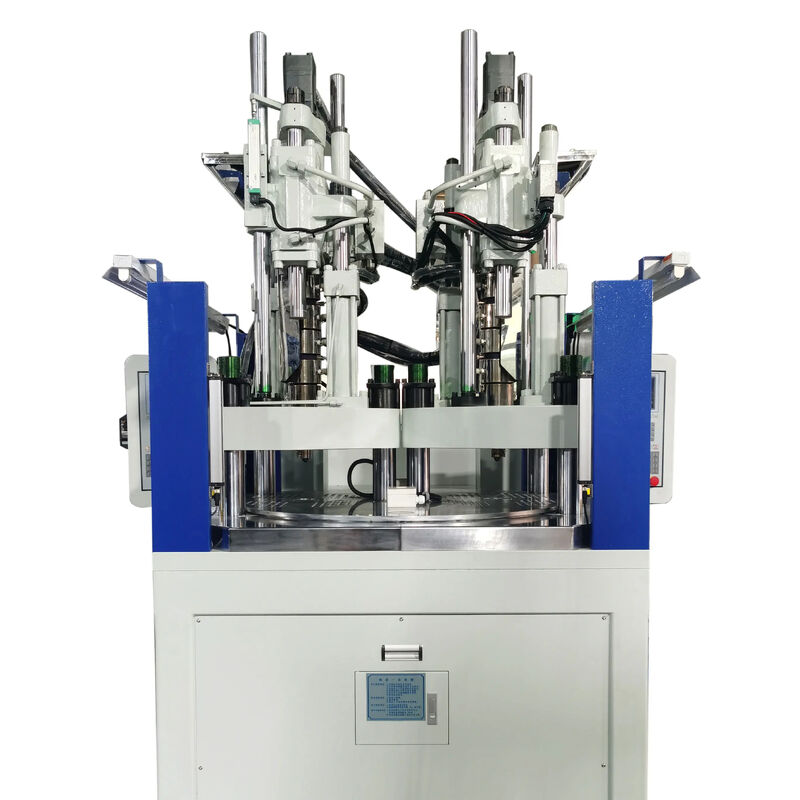

TR Glasses Spectacle Frame Two Color Vertical Injection Molding Machine 170T with PLC Pump Motor & Bearing for PA Processing
Detail produk:
| Tempat asal: | Guangdong, Tiongkok |
| Nama merek: | JINTONG |
| Nomor model: | JTT-1700-2V2R |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|---|
| Harga: | $59,000-61,000 |
|
Informasi Detail |
|||
| Plastik Diproses: | PA, TR | Gaya: | vertikal |
|---|---|---|---|
| Kapasitas Plastisisasi (g/s): | 230 | Tinggi Cetakan (mm): | 160 - 400mm |
| Nomor Ejektor: | Lainnya | Langkah Ejektor (mm): | 75 |
| Kekuatan Ejektor (kN): | 27 | Volume Pemotretan Teoretis (cm³): | 145 |
| Laju Injeksi (g/dtk): | 120 | Jenis mesin: | Hidrolik |
| Berat Injeksi (g): | 130 | Kecepatan sekrup (rpm): | 1 - 300 rpm |
| Diameter sekrup (mm): | 25 | Rasio L/D Sekrup: | 24 |
| Jarak antara Tie Bar: | 570mm | Berat (KG): | 9000 |
| Stroke Terbuka (mm): | 400 | Daya (kW): | 45.2 |
| Jaminan: | 1 Tahun | nilai jual utama: | Multifungsi |
| laporan pengujian mesin: | Asalkan | Inspeksi keluar video: | Asalkan |
| Komponen inti: | Bantalan, Motor, Pompa, PLC, Bejana tekan, Sekrup | Pukulan pembuka: | 270mm |
| Layanan Purna Jual Disediakan: | Insinyur Tersedia Untuk Melayani Mesin di Luar Negeri | Diameter Sekrup: | 25mm |
| Tangki minyak: | 800L | Nama Produk: | TR kacamata frame dua warna mesin injeksi cetakan 170T |
| Diameter Meja Putar: | 1080mm | Siang Hari Maks: | 550mm |
| min tinggi badan lama: | 250mm | Kekuatan Ejektor: | 2.7T |
| Menyoroti: | 170T vertical injection molding machine,PLC pump motor injection molding machine,PA processing spectacle frame machine |
||
Deskripsi Produk
Get the Hightlights
- Vertical clamping, vertical injection, easy to change color or material, well mixed, rapid temperature rise
- Clamping force: 170T
- Different injection combination can be chosen to reach best productivity and less power loss according to different shot weight
- One molding for dual-color/material embeded products, multi-sation rotary design, stable rotation, precise position, easy to put and pick out products
- Injection system can be used individually
- two color/material inject at the same time, suitable for all kinds of mold
- samples: tooth brush, trademark, different kinds of accessories,handle of bicycle or electric vehicles
DETAIL SHOT
ABOUT THE SUPPLIER
Dongguan Jintong Plastic Machinery Co., Ltd. specializes in vertical injection molding machines, offering advanced solutions for diverse industries. With 2000T clamping force capabilities and proprietary IP, the company delivers high productivity, precision, and reliability. Certified to European standards, Jintong provides comprehensive service and export solutions across Southeast Asia, Europe, and South America.
COMPANY OVERVIEW
COMPETITIVE ADVANTAGES
FACTORY PROFILE
CUSTOMIZATION CAPABILITIES
PRODUCTION WORKFLOW
TRADE SHOW PARTICIPATION
PACKAGING & SHIPPING SPECIFICATIONS
FAQs
Q: Are you trading company or factory?
A: We are factory to produce vertical injection molding machine more than 20 years.
Q: What is your machine warranty period?
A: 1 year against BL on board time
